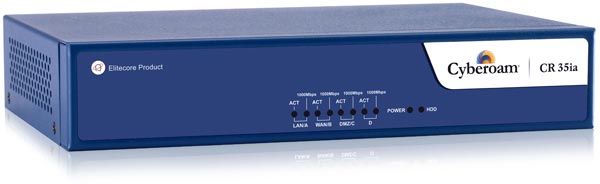

Cyberoam CR35ia UTM Appliance

• Powerful stateful and deep packet inspection
• Fusion technology blends all the components of Cyberoam into a single firewall policy
• Prevents DoS & flooding attacks from internal & external sources
• Identity-based access control for applications like P2P, IM

• Application layer protection
• Provides the right balance of security, connectivity and productivity
• Flexibility to set policies by user identity
• High scalability

• Threat Free Tunneling
• Industry standard: IPSec, SSL, L2TP, PPTP
• VPN VPN High Availability for IPSec and L2TP connections
• Dual VPNC Certifications - Basic and AES Interop

• Safe and clean VPN traffic
• Secure connectivity to branch offices and remote users
• Low cost remote connectivity over the Internet
• Effective failover management with defined connection priorities

• Scans HTTP, FTP, IMAP, POP3 and SMTP traffic
• Detects and removes viruses, worms and Trojans
• Access to quarantined mails to key executives
• Instant user identification in case of HTTP threats

• Complete protection of traffic over all protocols
• High business flexibility
• Protection of confidential information
• Real-time security

• Scans SMTP, POP3 and IMAP traffic for spam
• Detects, tags and quarantines spam mail
• Enforces black and white lists
• Virus Outbreak Protection
• Content-agnostic spam protection including Image-spam usingRecurrent Pattern Detection (RPD ) Technology
• Spam Notification through Digest
• IP Reputation-based Spam filtering

• Enhances productivity
• High business flexibility
• Protection from emerging threats
• High scalability
• Zero hour protection incase of virus outbreaks
• Multi-language and Multi-format spam detection

• Database of over 3000 signatures
• Multi-policy capability with policies based on default & custom signatures, source and destination
• Prevents intrusion attempts, DoS attacks, malicious code, backdoor activity and network-based blended threats
• Blocks anonymous proxies with HTTP proxy signatures
• Blocks “phone home” activities

• Low false positives
• Real-time Security in dynamic environments like DHCP and Wi-Fi
• Offers instant user-identification in case of internal threats
• Apply IPS policies on users

• Automated web categorization engine blocks non-work sites based on millions of sites in over 82+ categories
• URL Filtering for HTTP & HTTPS protocols
• Hierarchy, department, group, user-based filtering policies
• Time-based access to pre-defined sites
• Prevents downloads of streaming media, gaming, tickers, ads
• Supports CIPA compliance for schools and libraries

• Prevents exposure of network to external threats
• Blocks access to restricted websites
• Ensures regulatory compliance
• Saves bandwidth and enhances productivity
• Protects against legal liability
• Ensures the safety and security of minors online
• Enables schools to qualify for E-rate funding

• Committed and burstable bandwidth by hierarchy, departments, groups & users
• Category-based Bandwidth restriction

• Prevents bandwidth congestion
• Prioritizes bandwidth for critical applications

• Security over multiple ISP links using a single appliance
• Load balances traffic based on weighted round robin distribution
• Link Failover automatically shifts traffic from a failed link to a working link

• Easy to manage security over multiple links
• Controls bandwidth congestion
• Optimal use of low-cost links
• Ensures business continuity

• Complete Reporting Suite available on the Appliance
• Traffic discovery offers real-time reports
• Reporting by username

• Reduced TCO as no additional purchase required
• Instant and complete visibility into patterns of usage
• Instant identification of victims and attackers in internal network

• Multiple Zones security with separate levels of access rule enforcement for each zone
• Rules based on the combination of User, MAC, Source & Destination Zone and IP address and Service
• Actions include policy based control for IPS, Content Filtering, Anti virus, Anti spam and Bandwidth Management
• Access Scheduling
• Policy based Source & Destination NAT
• H.323 NAT Traversal
• 802.1q VLAN Support
• DoS & DDoS Attack prevention
• MAC & IP-MAC filtering and Spoof prevention

• Virus, Worm, Trojan Detection & Removal
• Spyware, Malware, Phishing protection
• Automatic virus signature database update
• Scans HTTP, FTP, SMTP, POP3, IMAP, VPN Tunnels
• Customize individual user scanning
• Self Service Quarantine area
• Scan and deliver by file size
• Block by file types
• Add disclaimer/signature

• Real-time Blacklist (RBL), MIME header check
• Filter based on message header, size, sender, recipient
• Subject line tagging
• IP address Black list/White list
• Redirect spam mails to dedicated email address
• Image-based spam filtering using RPD Technology
• Zero hour Virus Outbreak Protection
• Self Service Quarantine area
• Spam Notification through Digest
• IP Reputation-based Spam filtering

• Signatures: Default (3000+), Custom
• IPS Policies: Multiple, Custom
• User-based policy creation
• Automatic real-time updates from CRProtect networks
• Protocol Anomaly Detection
• Block
  • P2P applications e.g. Skype
  • Anonymous proxies e.g. UItra surf
  • “Phone home” activities
  • Keylogger

• Inbuilt Web Category Database
• URL, keyword, File type block
• Categories: Default(82+), Custom
• Protocols supported: HTTP, HTTPS
• Block Malware, Phishing, Pharming URLs
• Custom block messages per category
• Block Java Applets, Cookies, Active X
• CIPA Compliant
• Data leakage control via HTTP upload

• IPSec, L2TP, PPTP
• Encryption - 3DES, DES, AES, Twofish, Blowfish, Serpent
• Hash Algorithms - MD5, SHA-1
• Authentication - Preshared key, Digital certificates
• IPSec NAT Traversal
• Dead peer detection and PFS support
• Diffie Hellman Groups - 1,2,5,14,15,16
• External Certificate Authority support
• Export Road Warrior connection configuration
• Domain name support for tunnel end points
• VPN connection redundancy
• Overlapping Network support
• Hub & Spoke VPN support

• TCP & UDP Tunneling
• Authentication - Active Directory, LDAP, RADIUS, Cyberoam
• Multi-layered Client Authentication - Certificate, Username/Password
• User & Group policy enforcement
• Network access - Split and Full tunneling
• Browser-based (Portal) Access - Clientless access
• Lightweight SSL VPN Tunneling Client
• Granular access control to all the Enterprise Network resources
• Administrative controls - Session timeout, Dead Peer Detection, Portal customization

• Application and User Identity based Bandwidth Management
• Guaranteed & Burstable bandwidth policy
• Application & User Identity based Traffic Discovery
• Multi WAN bandwidth reporting
• Category-based Bandwidth restriction

User Identity and Group Based Controls:

• Access time restriction
• Time and Data Quota restriction
• Schedule based Committed and Burstable Bandwidth
• Schedule based P2P and IM Controls

Networking:

• Multiple Link Auto Failover
• WRR based Load balancing
• Policy routing based on Application and User
• DDNS/PPPoE Client
• Support for HTTP Proxy
• Dynamic Routing: RIP v1& v2, OSPF, BGP, Multicast Forwarding
• Parent Proxy support with FQDN
• DHCP Server and Relay

High Availability:

• Active-Active
• Active-Passive with state synchronization
• Stateful Failover
• Alert on Appliance Status change

Administration & System Management:

• Web-based configuration wizard
• Role-based administration
• Multiple administrators and user levels
• Upgrades & changes via Web UI
• Multi-lingual support: Chinese, Hindi, French
• Web UI (HTTPS)
• Command line interface (Serial, SSH, Telnet)
• SNMP (v1, v2c, v3)
• Cyberoam Central Console
• Version Rollback
• NTP Server Support

User Authentication:

• Local database
• Windows Domain Control & Active Directory Integration
• Automatic Windows Single Sign On
• External LDAP/RADIUS database Integration
• User/MAC Binding

Logging/Monitoring:

• Internal HDD
• Graphical real-time and historical monitoring
• Email notification of reports, viruses and attacks
• Syslog support

On-Appliance Reporting:

• Intrusion events reports
• Policy violations reports
• Web Category reports (user, content type)
• Search Engine Keywords reporting
• Data transfer reporting (By Host, Group & IP Address)
• Virus reporting by User and IP Address
• Compliance Reports

VPN Client:

• IPSec compliant
• Inter-operability with major IPSec VPN Gateways
• Supported platforms: Windows 98, Me, NT4, 2000, XP, Vista
• Import Connection configuration

Certification:

• ICSA Firewall - Corporate
• VPNC - Basic and AES interoperability
• Checkmark UTM Level 5 Certification

Compliance:

• CE
• FCC
