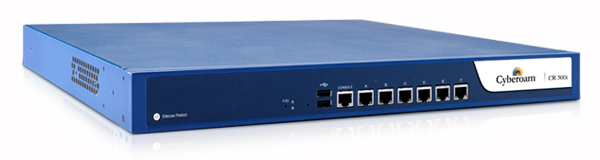

Cyberoam CR500i UTM Appliance
Comprehensive Network Security
for Small & Medium Offices
| Cyberoam Product | ||
|---|---|---|
| Cyberoam CR500i UTM Appliance | ||
| Cyberoam CR500i Appliance *The Purchase of at least 1 Year of Maintenance is Required (see below) |
#01-CRI-0500-01 Our Price: $4,040.00 |
|
| Cyberoam CR500i UTM Appliance Bundles - 1 Year | ||
| Cyberoam CR500i Appliance + Total Subscription Bundle, 1 Year *Includes: AntiVirus, AntiSpam, Web and Application Filter, Intrusion Prevention System and Basic 8x5 Support |
#01-CRI-BDL-0500-01 Our Price: $14,336.00 |
|
Click here to jump to more pricing!
Cyberoam CR500i UTM Appliance Overview:
Cyberoam Unified Threat Management appliances offer assured security, connectivity and productivity to Small Office-Home Office (SOHO) and Remote Office-Branch Office (ROBO) users by allowing user identity-based policy controls.
Cyberoam’s User Layer 8 Technology treats user-identity as the 8th Layer or the HUMAN layer in the protocol stack. It attaches user identity to security, taking organizations a step ahead of conventional solutions that bind security to IP-addresses. This adds speed to an organization’s security by offering instant visibility into the source of attacks by username rather than IP address – allowing immediate remediation to restore security or allowing proactive security. Layer 8 technology functions along with each of Cyberoam security features to allow creation of identity-based security policies.
Cyberoam’s future-ready Extensible Security Architecture (ESA) offers an extensible platform that can grow with the future security needs of an organization without degrading system performance. ESA supports feature enhancements that can be developed rapidly and deployed with minimum efforts.
Features & Benefits:
| Security | Connectivity | Productivity |
Network Security
Content Security
Administrative Security
|
Business Continuity
Network Availability
Future-ready Connectivity
|
Employee Productivity
IT Resource Optimization
Administrator Productivity
|
Product Comparision:
| Specifications: | 15i | 25ia | 35ia | 50ia | 100ia | 200i |
|---|---|---|---|---|---|---|
| Interfaces | ||||||
| 10/100 Ethernet Ports | 3 | - | - | - | - | - |
| 10/100/1000 GBE Ports | - | 4 | 4 | 6 | 6 | 6 |
| Configurable Internal/DMZ/WANPorts | Yes | Yes | Yes | Yes | Yes | Yes |
| Console Ports (RJ45/DB9) | 1 | 1 | 1 | 1 | 1 | 1 |
| SFP (Mini GBIC) Ports | - | - | - | - | - | - |
| USB Ports | 1 | 1 | 1 | 2 | 2 | 2 |
| Hardware Bypass Segments | 1* | 1* | 1* | |||
| System Performance* | ||||||
| Firewall Throughput (UDP) (Mbps) | 150 | 450 | 750 | 1000 | 1,250 | 2,200 |
| Firewall Throughput (TCP) (Mbps) | 90 | 225 | 500 | 750 | 1,000 | 1,500 |
| New sessions/second | 2,000 | 3,500 | 5,500 | 8,000 | 10,000 | 12,000 |
| Concurrent sessions | 30,000 | 130,000 | 175,000 | 220,000 | 400,000 | 450,000 |
| 3DES/AES throughput (Mbps) | 15/25 | 30/75 | 50/80 | 60/90 | 80/100 | 150/180 |
| Antivirus throughput (Mbps) | 20 | 65 | 125 | 150 | 200 | 280 |
| IPS throughput (Mbps) | 40 | 70 | 150 | 200 | 300 | 750 |
| UTM throughput (Mbps) | 15 | 50 | 90 | 130 | 160 | 250 |
| Authenticated Users/Nodes | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited |
| Dimensions | ||||||
| HxWxD(inches) | 1.7 x 6 x 9.1 | 1.7 x 9.1 x 6 | 1.7 x 9.1 x 6 | 1.7 x 16.8 x 10.3 | 1.7 x 16.8 x 10.3 | 1.7 x 17.3 x 14.6 |
| HxWxD(cms) | 4.4 x 15.3 x 23.2 | 4.4 x 23.2 x 15.3 | 4.4 x 23.2 x 15.3 | 4.3 x 42.7 x 26.2 | 4.3 x 42.7 x 26.2 | 4.3 x 43.9 x 37.1 |
| Weight | 1.5 kg, 3.307 lbs | 2.3 kg, 5.1 lbs | 2.3 kg, 5.1 lbs | 5.3 kg, 11.68 lbs | 5.3 kg, 11.68 lbs | 5.3 kg, 11.68 lbs |
| Power | ||||||
| Input Voltage | 100-240VAC | 100-240VAC | 100-240VAC | 115-230 VAC | 115-230VAC | 115-230VAC |
| Consumption | 13.2W | 33.5W | 47.8W | 90W | 90W | 41.5W |
| Total Heat Dissipation (BTU) | 45 | 114 | 163 | 200 | 200 | 324 |
| Redundant Power Supply | - | - | - | - | - | - |
| Environmental | ||||||
| Operating Temperature | 0 to 40 °C | 0 to 40 °C | 0 to 40 °C | 0 to 40 °C | 0 to 40 °C | 0 to 40 °C |
| Storage Temperature | -20 to 75 °C | 0 to 70 °C | 0 to 70 °C | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C |
| Relative Humidity (Non condensing) | 10 to 95% | -20 to 75% | -20 to 75% | 0 to 90% | 0 to 90% | 0 to 90% |
| Technical Specifications: | 300i | 500ia | 1000i | 1500i | ||
| Interfaces | ||||||
| 10/100 Ethernet Ports | - | - | - | - | ||
| 10/100/1000 GBE Ports | 6 | 10 | 10 | 10 | ||
| Configurable Internal/DMZ/WANPorts | Yes | Yes | Yes | Yes | ||
| Console Ports (RJ45/DB9) | 1 | 1 | 1 | 1 | ||
| SFP (Mini GBIC) Ports | - | - | 2 | 2 | ||
| USB Ports | 2 | 2 | 2 | 2 | ||
| Hardware Bypass Segments | 1* | 2 | 2 | 2 | ||
| System Performance* | ||||||
| Firewall Throughput (UDP) (Mbps) | 2,600 | 5,000 | 6,500 | 7,500 | ||
| Firewall Throughput (TCP) (Mbps) | 1,800 | 3,000 | 3,500 | 6,000 | ||
| New sessions/second | 15,000 | 25,000 | 25,000 | 40,000 | ||
| Concurrent sessions | 500,000 | 700,000 | 750,000 | 1,000,000 | ||
| 3DES/AES throughput (Mbps) | 180/200 | 325/400 | 400/500 | 600/750 | ||
| Antivirus throughput (Mbps) | 450 | 750 | 700 | 900 | ||
| IPS throughput (Mbps) | 850 | 1000 | 1,200 | 2,500 | ||
| UTM throughput (Mbps) | 350 | 550 | 600 | 750 | ||
| Authenticated Users/Nodes | Unlimited | Unlimited | Unlimited | Unlimited | ||
| Dimensions | ||||||
| HxWxD(inches) | 1.7 x 17.3 x 14.6 | 1.72 x 17.25 x 11.50 | 3.46 x 16.7 x 20.9 | 3.46 x 16.7 x 20.9 | ||
| HxWxD(cms) | 4.3 x 43.9 x 37.1 | 4.4 x 43.8 x 29.21 | 8.8 x 42.4 x 53.1 | 8.8 x 42.4 x 53.1 | ||
| Weight | 6.5 kg, 14.33 lbs | 5.54 kg, 12.118 lbs | 15.2 kg, 33.51 lbs | 15.2 kg, 33.51 lbs | ||
| Power | ||||||
| Input Voltage | 115-230VAC | 100-240VAC | 90-264VAC | 90-264VAC | ||
| Consumption | 41.5W | 128W | 210W | 210W | ||
| Total Heat Dissipation (BTU) | 324 | 375 | 718 | 718 | ||
| Redundant Power Supply | - | - | Yes | Yes | ||
| Environmental | ||||||
| Operating Temperature | 0 to 40 °C | 5 to 40 °C | 0 to 40 °C | 0 to 40 °C | ||
| Storage Temperature | -20 to 80 °C | -20 to 70 °C | -20 to 80 °C | -20 to 80 °C | ||
| Relative Humidity (Non condensing) | 0 to 90% | 0 to 90% | 10 to 90% | 10 to 90% | ||
*If Enabled, will bypass traffic only in case of power failure
**Antivirus, IPS and UTM performance is measured based on HTTP traffic as per RFC 3511 guidelines. Actual performance may vary depending on the real network traffic environments.
Full Feature Set:
Stateful Inspection Firewall
Gateway Anti-Virus & Anti-Spyware
Gateway Anti-Spam
Intrusion Prevention System
Web Filtering
Application Filtering
Virtual Private Network
SSL VPN*
Instant Messaging (IM) Management
|
Wireless WAN
Bandwidth Management
User Identity and Group Based Controls
Networking
High Availability*
Administration & System Management
User Authentication
Logging/Monitoring
On-Appliance Cyberoam-iView Reporting*
IPSec VPN Client
Certification
Compliance
|
*Available in all the Models except CR15i
**3G card and modem details are not included.
Documentation:
Download the Cyberoam CR1000i Appliance Datasheet (PDF).
Pricing Notes:
- All Cyberoam CRi Series Appliances must be purchased with a Support & Maintenance package; 8x5 or 24x7
- All Cyberoam CRi Series Appliances Include Firewall, VPN, Bandwidth management, Multiple ISP Load Balancing & Failover and Reporting Module
- Cyberoam's support & maintenance offerings include software updates/upgrades, a limited hardware warranty, phone/email technical support, and our live web assistance service
- Subscription services for ALL CR 500i units are bundled and cannot be purchased individually.
- All pricing subject to change at any time without notice.
| Cyberoam Product | ||
|---|---|---|
| Cyberoam CR500i UTM Appliance | ||
| Cyberoam CR500i Appliance *The Purchase of at least 1 Year of Maintenance is Required (see below) |
#01-CRI-0500-01 Our Price: $4,040.00 |
|
| Cyberoam CR500i UTM Appliance Bundles - 1 Year | ||
| Includes AntiVirus, AntiSpam, Web and Application Filter, Intrusion Prevention System and Basic 8x5 Support | ||
| Cyberoam CR500i Appliance + Total Subscription Bundle, 1 Year |
#01-CRI-BDL-0500-01 Our Price: $14,336.00 |
|
| Cyberoam CR500i Appliance + Total Subscription Bundle, 2 Year | #01-CRI-BDL-0500-02 Our Price: $19,394.00 |
|
| Cyberoam CR500i Appliance + Total Subscription Bundle, 3 Year | #01-CRI-BDL-0500-03 Our Price: $23,794.00 |
|
| Cyberoam CR500i UTM Appliance Bundles | ||
| Includes AntiVirus, AntiSpam, IPS, and CF & APP | ||
| Cyberoam CR500i Bundle Renewals, 1 Year |
#01-CCB-RNL-0500-01
Our Price: $9,306.00 |
|
| Cyberoam CR500i Bundle Renewal, 2 Year | #01-CCB-RNL-0500-02
Our Price: $13,101.00 |
|
| Cyberoam CR500i Bundle Renewal, 3 Year | #01-CCB-RNL-0500-02
Our Price: $16,308.00 |
|
| Cyberoam Subscriptions Services | ||
| Cyberoam CR500i Anti Virus Subscription | ||
| 1 Year Anti Virus for Cyberoam CR 500i | #01-CAV-BDL-0500-01 Our Price: $2,399.00 |
|
| 2 Year Anti Virus for Cyberoam CR 500i | #01-CAV-BDL-0500-02 Our Price: $3,999.00 |
|
| 3 Year Anti Virus for Cyberoam CR 500i | #01-CAV-BDL-0500-03 Our Price: $5,799.00 |
|
| Click here for Gateway Anti Virus Renewals | ||
| Cyberoam CR500i Anti Spam Subscription | ||
| 1 Year Anti Spam for Cyberoam CR 500i | #01-CAS-BDL-0500-01 Our Price: $1,399.00 |
|
| 2 Year Anti Spam for Cyberoam CR 500i | #01-CAS-BDL-0500-02 Our Price: $2,399.00 |
|
| 3 Year Anti Spam for Cyberoam CR 500i | #01-CAS-BDL-0500-03 Our Price: $3,499.00 |
|
| Click here for Gateway Anti Spam Renewals | ||
| Cyberoam CR500i Web and Application Filter Subscription | ||
| 1 Year Web and Application Filter for Cyberoam CR 500i | #01-CFS-BDL-0500-01 Our Price: $3,999.00 |
|
| 2 Year Web and Application Filter for Cyberoam CR 500i | #01-CFS-BDL-0500-02 Our Price: $5,439.00 |
|
| 3 Year Web and Application Filter for Cyberoam CR 500i | #01-CFS-BDL-0500-03 Our Price: $6,589.00 |
|
| Click here for Web and Application Filter Renewals | ||
| Cyberoam CR500i Intrusion Prevention System Subscription | ||
| 1 Year Intrusion Prevention System for Cyberoam CR 500i | #01-CIP-BDL-0500-01 Our Price: $1,999.00 |
|
| 2 Year Intrusion Prevention System for Cyberoam CR 500i | #01-CIP-BDL-0500-02 Our Price: $2,719.00 |
|
| 3 Year Intrusion Prevention System for Cyberoam CR 500i | #01-CIP-BDL-0500-03 Our Price: $3,299.00 |
|
| Click here for Intrusion Prevention System Renewals | ||
| Cyberoam CR500i UTM Appliance Support & Maintenance | ||
| Cyberoam CR500i Basic Support | ||
| Cyberoam Basic 8x5 Support & Maintenance for all Cyberoam CR 500i, 1 Year | #01-WSS-BDL-0500-01
Our Price: $1,999.00 |
|
| Cyberoam Basic 8x5 Support & Maintenance for all Cyberoam CR 500i, 2 Year | #01-WSS-BDL-0500-02
Our Price: $1,899.00 |
|
| Cyberoam Basic 8x5 Support & Maintenance for all Cyberoam CR 500i, 3 Year | #01-WSS-BDL-0500-03
Our Price: $2,729.00 |
|
| Cyberoam CR500i Premium Support | ||
| Cyberoam Premium 24x7 Support & Maintenance for all Cyberoam CR 500i, 1 Year | #01-FSS-BDL-0500-01 Our Price: $1,519.00 |
|
| Cyberoam Premium 24x7 Support & Maintenance for all Cyberoam CR 500i, 2 Year | #01-FSS-BDL-0500-02
Our Price: $2,859.00 |
|
| Cyberoam Premium 24x7 Support & Maintenance for all Cyberoam CR 500i, 3 Year | #01-FSS-BDL-0500-03 Our Price: $4,099.00 |
|
