Cyberoam - Identity-based unified threat management appliances.Cyberoam NetGenie SOHO

Say yes to office productivity and no to online threats

NetGenie SOHO

Cyberoam NetGenie

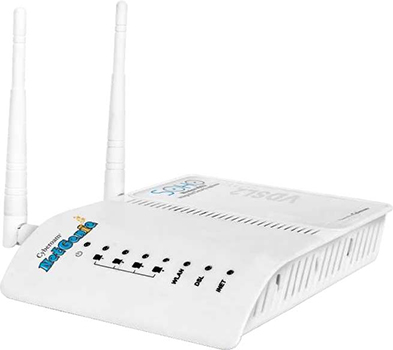

Cyberoam NetGenie SOHO Appliance
- Includes 3 years AV, IPS, Web and Application filtering subscriptions and 1 year hardware warranty
#01-CRNG-11VO-03
Our Price: $265.00
NetGenie SOHO Support - 3 Years
- Phone and Email support with extended hardware warranty
#01-CSS-PRC-11VO-03
Our Price: $92.00

Demos on Demand

NetGenie Unified Threat Management for Small Office - Home Office (SOHO) Overview:

NetGenie Soho

  • Manage access to Websites & Applications
  • Protection from Bots & Hackers
  • VPN
  • Excellent Wireless Range & High Performance
  • Supports VDSL2, ADSL2+, Cable Internet, 3G USB modem

Cyberoam NetGenie is an 802.11n Wireless VDSL/ADSL2+ Integrated Security Appliance for Small and Home Offices that helps them enhance office productivity and block online threats in their networks. It offers advanced Internet access controls that help you closely manage, schedule and monitor Internet activities of your employees even when you are away from office. With features like Stateful Inspection Firewall, VPN (Virtual Private Network), 3G Ready, in-built Intrusion Prevention System and Internet Controls over websites and applications in a Wireless Router, NetGenie offers multiple features in a single appliance to small offices.

NetGenie offers protection from bots and hackers and is pre-configured to protect against unauthorized access and misuse of office Wi-Fi network. With added wireless capabilities and WEP, WPA and WPA2 encryption standards, NetGenie allows safe Internet access using any Internet-enabled device including laptops, PDA, smartphones, IPTV, and more. It also allows secure access to resources lying at remote offices with itsVPN feature.

Features & Benefits:


Cyberoam NetGenie Features
Website Filtering

Website Filtering

Block harmful websites and limit access to unproductive websites like job sites, sports sites, and more with pre- categorized list of websites. An easy slider allows you to select the level of Internet controls- List Only, Strict, Moderate, Minimal and Safe Surfing for office users.

Share your 3G USB modem Internet

Share your 3G USB modem Internet

Share Internet over your USB broadband with multiple users at same time.

Application Filtering

Application Filtering

Block or limit access to applications like Facebook, Gtalk, Yahoo Messenger, and more with pre-categorized list of applications.

Threat-Free Wi-Fi

Threat-Free Wi-Fi

Prevent unauthorized access into your office Wi-Fi network, the moment you turn on NetGenie, without the need for manual settings.

Protection from Bots & Hackers

Protection from Bots & Hackers

Protect your desktop, laptops, handheld devices like mobile phones and tablets, gaming consoles and IPTV from hackers and bots when online with enterprise-level security features like in-built Firewall and Intrusion Prevention System.

Excellent Wireless Range & High Performance

Excellent Wireless Range & High Performance

Get superior wireless performance, with leading 802.11n technology. Share your office Wi-Fi network with wireless devices without dead spots.

Virtual Private Network

Virtual Private Network

Get secure access to network resources located at remote offices like vendors’ offices or central office.

Supports VDSL2, ADSL2+, Cable Internet, 3G USB modem

Supports VDSL2, ADSL2+, Cable Internet, 3G USB modem

Next time when you switch your Internet connectivity, you don't need to worry about changing your router.

Gigabit Port Gigabit Port

Specifications:


NetGenie v/s Others NetGenie VDSL2/ADSL2+ Normal Wi-Fi router
Wi-Fi Access Point Yes Yes

Threat-Free Wi-Fi

Yes No
Protection from Bots & Hackers Yes No
Advanced Parental Controls Yes No
Website and Application Filtering Yes No
User-wise Internet controls for websites, applications Yes No
Age-appropriate Internet access Yes No
Pre-categorized list of Websites & Applications Yes No
Schedule-based Internet Access Yes No
Reports
Internet activity reports of each user Yes No
Internet Threat reports Yes No

Technical Specs
Interfaces

RJ11 1 DSL Line Port (RJ11)
RJ45 1 Gigabit LAN port (RJ45) (MDI/MDIX), 3 10/100M LAN Ports (RJ45) (MDI/MDIX)
USB Port 1 (2.0, Host)

Wireless Features and Performance*

Wireless Standards IEEE 802.11 b/g/n
Antenna Power External, 3 dBi
Wireless transmit power 20dBm
Access Points Multiple SSID (up to 4) WPA / WPA2, WEP encryption
Data Rate Upto 300 Mbps
Number of selectable channels 11 Channels (US, Canada)
13 Channels (Europe)
14 Channels (Japan)
RF Operating Frequency 2.4 Ghz
Range Indoor: up to 100 meters;
Outdoor: up to 300 meters

VDSL and ADSL Features

  • Fullrate ANSI T1.413 issue 2
  • ITUT G.992.1 (G.dmt), supporting Annex A
  • ITU TG.992.2 (G.lite), supporting Annex A
  • ITUT G.992.3 (G. dmt.bis), supporting Annex A, Annex L and Annex M
  • ITUT G.992.4 (G.lite.bis), supporting Annex A
  • ITUT G.992.5 (ADSL2+), supporting Annex A, Annex L and Annex M
  • ITUT G.993.2(G.vdsl2) (Profile 8a, 8b, 8c, 8d, 12a,12b and 17a)
  • ITUT G.994.1 (G.hs) and G.993.1 VDSL
  • Support Band Plan 997 and 998 and 3/4/5/6 band
  • Data Transmission Rate
  • Upstream: Up to 50 Mbps, Downstream: Up to 100 Mbps.
  • Rate Adaptive at 32 Kbps steps

ATM and PPP Features

  • RFC2684 Bridge and Routed LLC & VC
  • RFC2364 PPP over ATM AAL5
  • RFC2516 PPP over Ethernet
  • RFC2225/RFC1577 Classical IP over ATM
  • RFC1483 Transparent Bridge
  • RFC 1483/2684 Bridged Ethernet
  • ATM Forum UNI 3.1/4.0, ATM Adaptation Layer Type 5AAL5
  • VPI Range (0255) and VCI range (3265535)
  • UBR, CBR, VBRrt, VBRnrt
  • F4/F5 OAM Loopback
  • AIS and RDI OAM cells Supports 16 PVCs

Network Protocols

  • Static IP
  • Network Address Translation (NAT)
  • Port Forwarding
  • NAT Application Level Gateway for popular applications
  • DHCP Server /client
  • DNS Relay Agent
  • DDNS support
  • UPnP (Universal Plug and Play)
  • PPP Auto Reconnect
  • ALG for SIP, FTP, TFTP, H323, IRC,PPTP and RTSP

VPN (Virtual Private Network)

  • IPSec

Internet Control

  • Website Filtering & Application Filtering
  • Identitybased Internet Access
  • Block offensive and inappropriate websites and applications
  • Different level of Internet access
  • Website and Application Control provide scheduled access to website categories and applications
  • Customize usage with Internet controls Customize the access privileges for each office user based on business needs
  • MAC address white list

Security Features

  • Firewall with SPI (Stateful Packet Inspection)
  • IP Sharing Method Network Address Translation (NAT)
  • Intrusion Prevention System (IPS)
  • Authentication protocols PAP, CHAP, TCP/IP/Port filtering rules, Port
  • Forwarding, Packet and MAC address filtering, Access control

Management

  • Userfriendly Web Interface
  • Password Protected System Management
  • Automatic/manual system clock synchronization with NTP server
  • Configuration backup and restoration
  • Software upgrade via HTTP
  • NetGenie DDNS

Reports

  • Monitor web and application activity of each office users over Internet
  • Websites visited, Applications used

Compliance

  • FCC, CE, ROHS

Warranty

  • Localized to country of sale

Power

External Power adapter 100240 VAC
Humidity 10 ~ 90% (noncondensing)
Operating temperature 0°C~40°C
LEDs PWR,LAN1,LAN2,LAN3,LAN4,WLAN,DSL,INET

Minimum Requirements

  • Internet Explorer 7, Chrome or Firefox 3 or higher for browserbased configuration
  • Windows XP, Vista, or Vista 64bit Edition, Windows 7, Linux based OS, Mac OS with Latest Updates
  • Wired or Wireless Network Adaptor
  • VDSL/ADSL Internet connection with RJ1

Package Contents

  • Appliance x 1
  • Antenna x 2
  • RJ11 cable x 1
  • RJ45 cable x 1
  • External splitter x1
  • MultiCountry Power Adapter x 1
  • USB broadband extension cable
  • Quick Start Guide x 1

Documentation:

Download the Cyberoam NetGenie SOHO Datasheet (PDF).
